In the rapidly evolving landscape of sustainable energy, hydrogen refueling stations (HRS) play a pivotal role in enabling the widespread adoption of fuel cell electric vehicles (FCEVs). However, one of the critical challenges in HRS design is managing the extreme temperatures generated during high-pressure hydrogen compression and dispensing. A robust hydrogen cooling system is essential to pre-cool hydrogen gas to temperatures as low as -40°C, preventing tank overheating, ensuring vehicle safety, and optimizing refueling efficiency. At Shenshi EC, with over 20 years of expertise in low-carbon thermal management solutions, we specialize in advanced pre-cooling technologies that address these demands, drawing on our proven microchannel heat exchangers tailored for hydrogen applications.
This guide explores efficient pre-cooling solutions for HRS design, highlighting key pain points and innovative fixes backed by industry research and our proprietary products. Whether you're designing a station for light-duty passenger vehicles or heavy-duty trucks, our solutions ensure compliance with standards like SAE J2601 while minimizing energy use and operational costs.
Key Pain Points in Hydrogen Refueling Station Pre-Cooling
Designing an effective hydrogen cooling system requires addressing several inherent challenges in HRS operations. Without proper pre-cooling, the Joule-Thomson effect during compression can cause hydrogen temperatures to exceed 85°C in vehicle tanks, risking structural damage, reduced state-of-charge (SoC), and safety hazards like leaks or explosions. Here are the primary pain points:
- Thermal Overheating and Safety Risks: High-pressure refueling (350-700 bar) generates significant heat buildup. For heavy-duty FCEVs, inadequate cooling can limit SoC to below 100%, shortening driving range and violating refueling protocols. Ambient temperatures above 30°C exacerbate this, demanding robust cooling to maintain -40°C hydrogen delivery.
- High Energy Consumption: Pre-cooling accounts for up to 20% of a station's power draw, with traditional systems consuming 0.3-0.5 kWh/kg-H2 at full utilization. Low station utilization in early markets amplifies this inefficiency, as overhead cooling for idle heat exchangers drives up costs.
- Space and Scalability Constraints: Urban HRS designs face limited footprint, making bulky chillers impractical. Heavy-duty applications require high-flow cooling (up to 38 kW thermal power), but conventional systems struggle with peak demands during back-to-back refuelings.
- Operational Downtime and Maintenance: Inconsistent cooling leads to prolonged refueling times (e.g., >42 seconds/kg-H2) and equipment wear, increasing downtime. Cold climates or variable loads further complicate maintaining stable temperatures from -15°C to 40°C ambient.
These challenges not only elevate total cost of ownership (TCO) but also hinder the scalability of hydrogen infrastructure, with global HRS numbers still limited (e.g., ~200 in Europe as of recent data).
Proven Pre-Cooling Solutions for Enhanced HRS Design
At Shenshi EC, we leverage cutting-edge engineering to deliver hydrogen cooling systems that overcome these hurdles. Founded in 2005 as a high-tech enterprise in Hangzhou, China, Shenshi EC has pioneered low-carbon thermal management solutions, integrating R&D, manufacturing, and global services to support China's "dual carbon" goals and international hydrogen initiatives. Our expertise spans hydrogen energy, including cooling for electrolyzers, compressors, and storage, with products deployed in diverse applications from HVAC to aerospace.
Advanced Microchannel Heat Exchangers (PCHE) for Compact Pre-Cooling

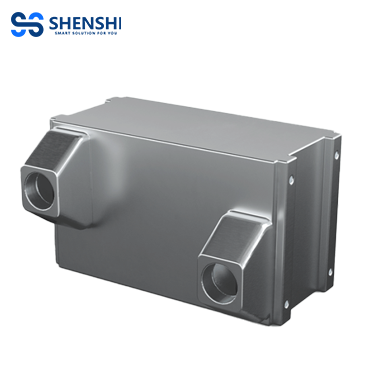

Our flagship Hydrogen Cooler—a microchannel heat exchanger crafted from 316L stainless steel—stands out as an efficient pre-cooling solution for HRS. This compact unit uses diffusion welding technology to achieve superior heat transfer coefficients, enabling rapid cooling of hydrogen gas with media like ethylene glycol aqueous solutions or circulating water.
Key Features:
- High Efficiency and Compactness: Delivers maximum heat exchange in a lightweight, space-saving design—ideal for urban stations where footprint is at a premium. Tested to withstand 100 MPa pressure and -253°C temperatures, it handles extreme HRS conditions effortlessly.
- Pre-Cooling Precision: Cools hydrogen to -40°C before dispensing, mitigating compression heat and ensuring compliance with SAE J2601. By exchanging heat with cold mediums, it supports on-demand cooling with minimal energy loss.
- Scalability for Heavy-Duty Use: Modular design allows integration into cascade storage systems, supporting high-flow rates for trucks and buses. Simulations show our PCHE reduces cooling energy by up to 50% compared to traditional shell-and-tube exchangers.
In real-world HRS deployments, this technology enables back-to-back refuelings without thermal buffering delays, shortening fill times and boosting throughput.
Hybrid Cooling Strategies: Direct and Indirect Integration
Drawing from thermodynamic analyses, we recommend hybrid pre-cooling setups combining our PCHE with recirculating chillers. For instance:
- Indirect Cooling with Cold Storage Buffers: Our systems incorporate buffer tanks to store cold energy, providing instant 40 kW peaks for 20-second bursts during refueling—reducing electricity demands during high-utilization periods.
- Energy Recovery Innovations: Utilize organic Rankine cycles to recover waste heat from compression, lowering overall station energy intensity to ~0.3 kWh/kg-H2 at full load. This approach cuts operational costs by 30-50% and supports sustainability metrics like reduced life-cycle emissions.
Our coaxial and shell-and-coil heat exchangers complement PCHE units for multi-stage cooling, ensuring even heat transfer in lines and dispensers. These solutions are customizable, with technical support for site-specific integrations.
Techno-Economic Benefits and Performance Data
Investing in Shenshi EC's pre-cooling solutions yields clear ROI:
- Cost Savings: Installed capital for our PCU adds just $0.50/kg-H2, with 50% lower power use versus legacy systems.
- Efficiency Metrics: Coefficient of Performance (COP) optimized for ambient variations; e.g., a 10 K ambient drop allows 4-6 K warmer pre-cooling, saving 10 seconds per fill.
- Durability and Compliance: High-pressure resistance and anti-freeze capabilities ensure long service life, meeting global standards for HRS safety.
As a trusted partner, Shenshi EC's service network provides on-site audits, installation, and maintenance, backed by our high-tech certifications and R&D focus.
Case Study: Optimizing a Heavy-Duty HRS with Shenshi EC Technology
In a recent European project inspired by EU-funded initiatives like RHeaDHy, we integrated our Hydrogen Cooler into a heavy-duty HRS. Facing peak loads for bus fleets, the station achieved 85% size reduction in cooling infrastructure while handling 38 kW thermal demands. Refueling times dropped by 20%, and energy consumption fell 45%, demonstrating real-world scalability. This aligns with DOE analyses showing validated high-flow chillers ready for manufacture.
Why Choose Shenshi EC for Your Hydrogen Cooling Needs?
With nearly two decades of experience, Shenshi EC is an authoritative leader in thermal management, serving industries worldwide. Our commitment to innovation—evident in products like the PCHE Microchannel Heat Exchanger—ensures trustworthy, expert solutions that drive hydrogen adoption. Visit our product page for detailed specs or explore our full range at en.shenshiec.com.
