What is a Microchannel Reactor?

Introduction to Microchannel Reactors

Microchannel reactors operate as continuous flow systems, unlike traditional batch reactors, allowing reactants to flow through microscale channels (10–200 μm in diameter) where reactions occur with exceptional heat and mass transfer efficiency. Their high surface-to-volume ratio—often reaching 10,000–50,000 m²/m³ compared to 10–100 m²/m³ in conventional reactors—enables rapid mixing, precise temperature control, and safer handling of exothermic reactions. This technology, pioneered in the 1990s for liquid-phase reactions, has transformed chemical synthesis by reducing energy consumption, minimizing waste, and improving product purity.

How Microchannel Reactors Work

The working principle of microchannel reactors leverages the unique fluid dynamics at the microscale:

• Laminar Flow and Diffusion: Channels with hydraulic diameters of 10–200 μm create laminar flow (Reynolds number <500), where molecular diffusion dominates, ensuring rapid and uniform mixing.
• High Heat and Mass Transfer: With heat transfer coefficients up to 500 MW/m³K, microchannel reactors efficiently manage exothermic reactions, preventing hotspots and enabling safe operation at high temperatures (e.g., nitrations at elevated temperatures).
• Continuous Operation: Reactants are continuously fed through microchannels using low-pulsation metering pumps, allowing precise control of residence times (milliseconds to seconds) and eliminating backmixing, which ensures consistent product quality.
• Catalyst Integration: Channels can be coated with catalysts (e.g., RuCl₃, Pt, or KOH) to enhance reaction rates, as seen in applications like biodiesel production or Fischer-Tropsch synthesis.

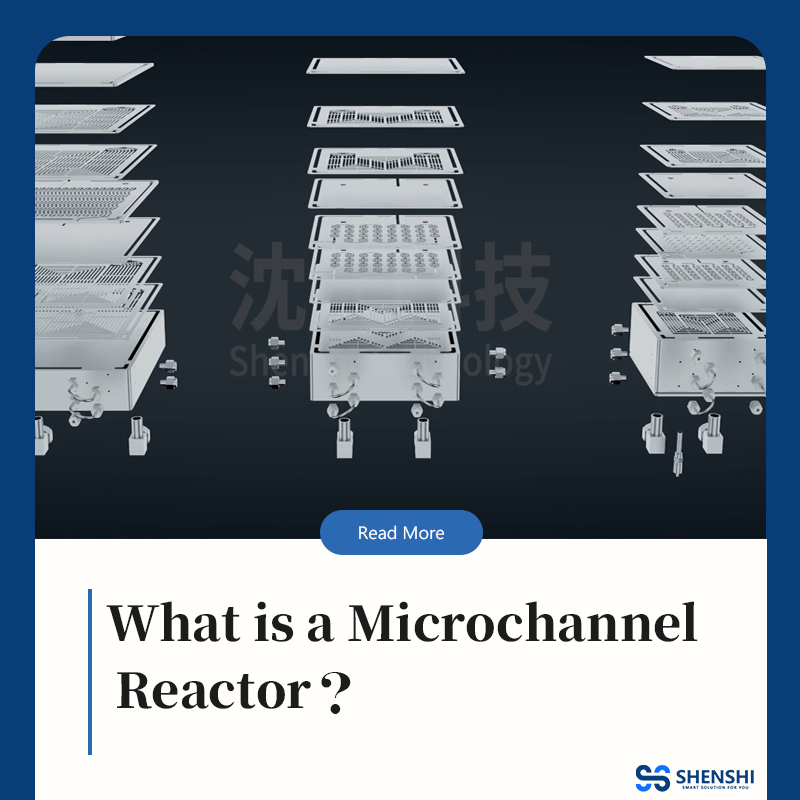

Shenshi Technology’s microchannel reactors, such as the AMR-O50 and AMR-W50, integrate advanced multi-layer designs to maximize heat transfer and mixing efficiency, making them ideal for continuous flow chemistry.

Benefits of Microchannel Reactors

Case Study: Shenshi’s microchannel reactors have been used in pharmaceutical synthesis, achieving 98%+ yields in drug production with residence times as low as 28 seconds, showcasing their efficiency and reliability. Learn more about our solutions.

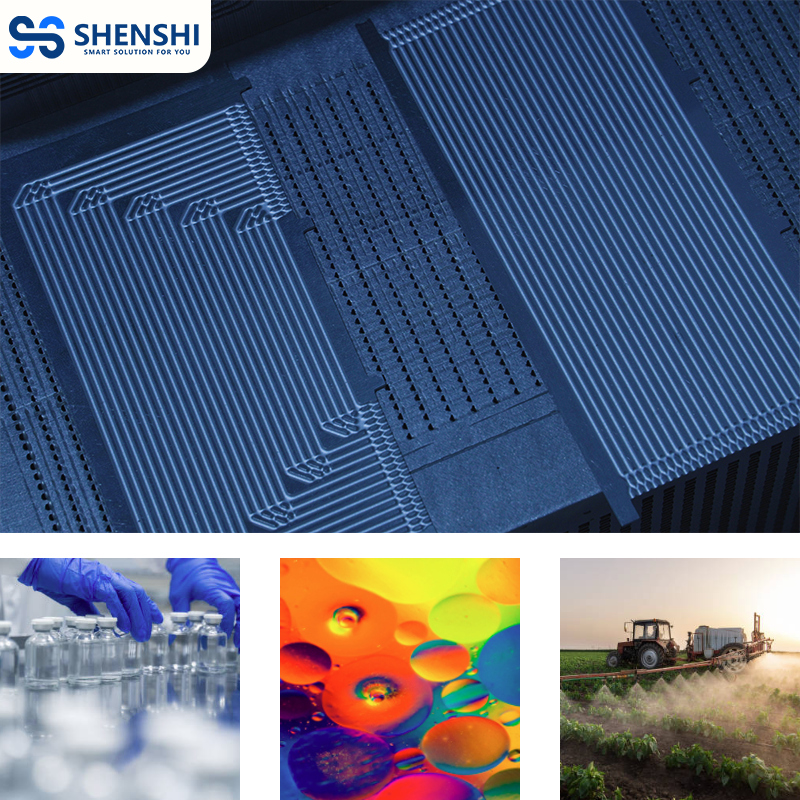

Applications of Microchannel Reactors

Microchannel reactors are versatile, supporting a wide range of industries and applications:

• Pharmaceuticals: High-efficiency synthesis of active pharmaceutical ingredients (APIs), catalytic reactions, and crystal engineering, accelerating drug development with precise control.
• Petrochemicals: Optimization of processes like heavy oil cracking and Fischer-Tropsch synthesis, with high C5+ selectivity and energy efficiency.
• New Materials: Synthesis of nanomaterials with uniform particle sizes, supporting rapid development and large-scale production.
• Dyes and Fragrances: Enhanced mixing for consistent color or fragrance profiles, reducing production costs.

Types of Microchannel Reactors

Microchannel reactors come in various configurations tailored to specific needs:

• T-Shaped Reactors: Simple designs with two inlets for reactants and one outlet, ideal for basic mixing and reaction studies.
• Zig-Zag Microchannels: Enhance mixing through passive chaotic advection, achieving high yields (e.g., 99.5% in biodiesel synthesis) with short residence times.
• Packed Microchannels: Incorporate catalysts like CaO for solid-phase reactions, improving reaction rates in biodiesel or gas-liquid-solid processes.
• Spiral Tube Reactors: Promote rotational flow for enhanced mixing, as offered by Shenshi’s spiral tube reactor systems.
• Integrated Systems: Shenshi’s micro-continuous flow skid-mounted systems combine multiple units for seamless lab-to-industrial scale transitions.

Challenges and Solutions

While microchannel reactors offer transformative benefits, they face challenges:

• Clogging: Particulates can block microchannels, but Shenshi’s designs, like the microjetreactor, minimize clogging by optimizing flow paths and using corrosion-resistant materials like Hastelloy C276 or silicon carbide.
• Pressure Drop: High flow rates can increase pressure drops, addressed by Shenshi’s modular designs with standardized connections for uniform fluid distribution.
• Scale-Up: Numbering-up ensures scalability, and Shenshi’s stacked multichannel reactors (SMCR®) maintain performance at industrial scales.

Why Choose Shenshi Technology’s Microchannel Reactors?

Shenshi Technology leads the industry with innovative microchannel reactors designed for performance and reliability:

• Customizable Materials: Options include 316L stainless steel, duplex steel, Hastelloy C276, TA10, Zr, and silicon carbide, tailored to your reaction conditions.
• Flexible Configurations: Multi-stream feed, zonal temperature control, and modular designs for lab, pilot, or industrial applications.
• Seamless Integration: Standardized imperial/metric interfaces ensure compatibility with existing systems, simplifying industrialization.
• Quality Assurance: 18-month warranty post-contract or 12 months post-use, ensuring long-term reliability.
• Proven Expertise: Our reactors have powered high-yield syntheses in pharmaceuticals and petrochemicals, backed by rigorous R&D.

Explore Shenshi’s Microchannel Reactor Portfolio

Conclusion

Microchannel reactors represent a paradigm shift in chemical engineering, offering unmatched efficiency, safety, and scalability for modern synthesis needs. From pharmaceuticals to sustainable biodiesel production, their ability to deliver high yields with minimal environmental impact makes them indispensable. Shenshi Technology’s advanced microchannel reactors, with customizable designs and robust performance, empower industries to achieve greener, more efficient processes.
